型号 Item |
材质 Compostion |
颜色 Color |
层数 Layer |
硬度 Hardness |
花纹 Emsbossing |
厚度 Thickness (mm) |
重量 Weight (KG/㎡) |
1%延伸受力 1% Elongation (N/mm) |
最小滚轮直径 Min.Dia of roller (mm) |
温度范围 Temperature |
最大宽度 Max width (mm) |

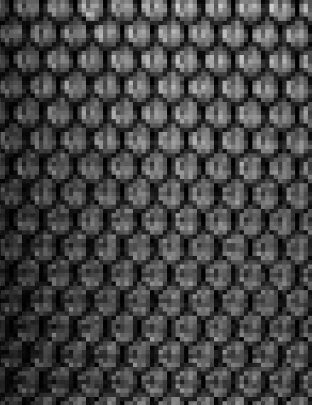

| H90C1-16-GF | PVC | Black | 1F1M | 75 | Golf | 1.6 | 1.6 | 6 | 25 | -10℃+70℃ | 3800 |
| H90C2-20-GF | PVC | Black | 2F2M | 75 | Golf | 2 | 2.3 | 9 | 30 | -10℃+70℃ | 3800 |
|
|||||||||||
|
型号 Item |
材质 Compostion |
颜色 Color |
层数 Layer |
硬度 Hardness |
花纹 Emsbossing |
厚度 Thickness (mm) |
重量 Weight (KG/㎡) |
1%延伸受力 1% Elongation (N/mm) |
最小滚轮直径 Min.Dia of roller (mm) |
温度范围 Temperature |
最大宽度 Max width (mm) |

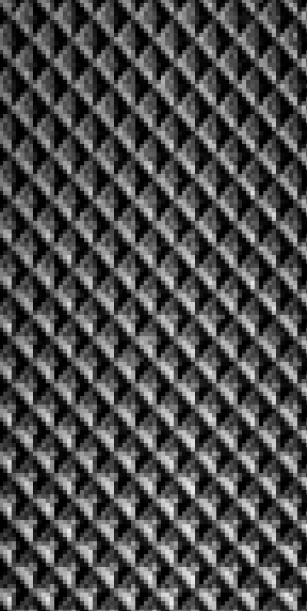

| H90C1-14-D | PVC | Black | 1F1M | 75 | Diamond | 1.4 | 1.4 | 6 | 25 | -10℃+70℃ | 3800 |
| H90C1-16-D | PVC | Black | 1F1M | 75 | Diamond | 1.6 | 1.6 | 6 | 25 | -10℃+70℃ | 3800 |
| H90C2-16-D | PVC | Black | 2F2M | 75 | Diamond | 1.6 | 1.8 | 9 | 30 | -15℃+80℃ | 3800 |
| H90C2-20-D | PVC | Black | 2F2M | 75 | Diamond | 2 | 2.3 | 9 | 30 | -10℃+70℃ | 3800 |
|
|||||||||||
|
型号 Item |
材质 Compostion |
颜色 Color |
层数 Layer |
硬度 Hardness |
花纹 Emsbossing |
厚度 Thickness (mm) |
重量 Weight (KG/㎡) |
1%延伸受力 1% Elongation (N/mm) |
最小滚轮直径 Min.Dia of roller (mm) |
温度范围 Temperature |
最大宽度 Max width (mm) |

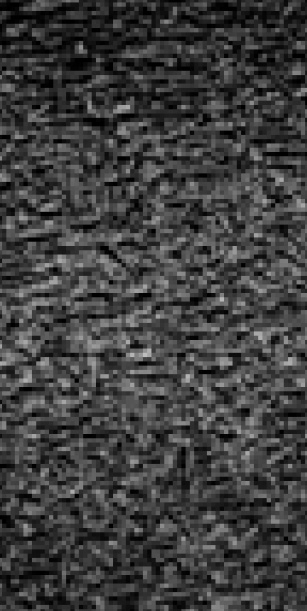

| H90C1-14-H | PVC | Black | 1F1M | 75 | Hair | 1.4 | 1.4 | 6 | 25 | -10℃+70℃ | 3800 |
| H90C1-16-H | PVC | Black | 1F1M | 75 | Hair | 1.6 | 1.6 | 6 | 25 | -10℃+70℃ | 3800 |
| H90C2-16-H | PVC | Black | 2F2M | 75 | Hair | 1.6 | 1.8 | 9 | 30 | -10℃+70℃ | 3800 |
| H90C2-20-H | PVC | Black | 2F2M | 75 | Hair | 2 | 1.8 | 2.3 | 30 | -10℃+70℃ | 3800 |
